High-speed centrifugal spray dryer
分享:

Overview:
High-speed centrifugal spray drying is the use of the raw material liquid atomizer droplet dispersion is, and dried with hot air to obtain the product of a droplet drying method. Feed solution can be solution, suspension, or a liquid or cream melting liquid paste. Dry products can be made as needed powder, granular, hollow spheres or pellets.

Working principle:
Air is filtered and heated, the air distributor into the dryer at the top, spiral hot air evenly into the drying chamber, liquid through the top of the tower high-speed, high-speed centrifugal atomizer, (rotation) spray into extremely fine mist liquid beads, and hot air exposure in a very short period of time can be dry for the finished product. Product continuously from the bottom of the drying tower and cyclones in the output, exhaust from the fan discharge.

Performance Introduction:
Atomizer core components: high-precision bearings used in all (Sweden SKF bearings),
no-load vibration ≤ 5μM load vibration ≤ 15μM
Trouble-free operation: up to 7,000 hours or more.
Atomizer total feeding quantity :5-15000kg / h.
Electrical control system: different levels, sub-scale, various control programs to meet different needs; classical logic approach; dynamic process simulation system; FX-DU/WIN-C special software programming; PLC control; configuration control; man-machine interface touch screen operation control.
Pharmaceutical drying machine can be added: shaking, sweeping gas, the cooling jacket and other equipment, piping all in compliance with GMP requirements.

Features:
A. Fast drying, after the spraying of liquid surface area increased significantly, in the hot air flow, the moment can be 95% ~ 98% evaporation of water, only a few seconds to complete the drying time, especially for drying heat sensitive materials.
B. Product has a good uniformity, fluidity and solubility, high purity and good quality.
C. Production process is simplified, convenient control. The moisture content of 40 ~ 60% (90% of special materials) of the liquid can be dried into a powder product, after drying without crushing and screening to reduce the production processes, improve product purity, product size, bulk density, water, within a certain range can be adjusted by changing the operating conditions, control and management are very convenient.

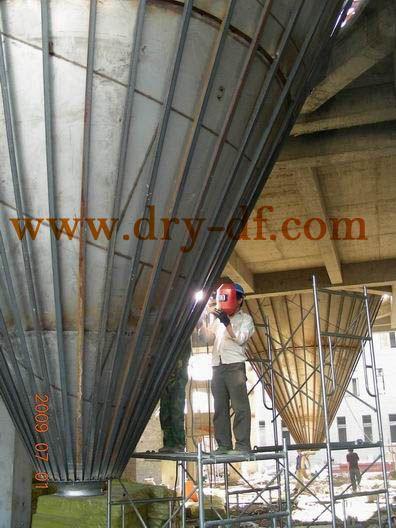

Installation of large high-speed centrifugal spray drying equipment

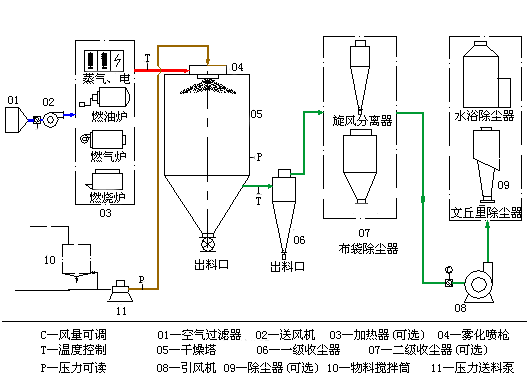

High-speed centrifugal spray dryer flow chart

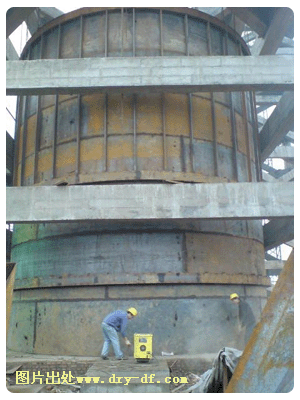

Installation of large high speed centrifugal spray dryer

Use:
Spray drying is a liquid process shaping and drying industry’s most widely used technology. Ideal for from the solution, emulsion, suspension and plasticity of materials generated in the liquid paste powder, granular or bulk solid products. Therefore, when the finished product particle size distribution, residual moisture content, bulk density and particle shape must meet precise standards, the spray drying is a very good process.



Spray drying of industrial products

Polymer and resin products:
acrylonitrile-butadiene resin, acrylonitrile butadiene styrene resin, melamine formaldehyde resin, poly formaldehyde, phenol formaldehyde resin, acrylic acid resin, polyacrylonitrile, polycarbonate, polyethylene, polyethylene formaldehyde, polypropylene, polystyrene, polyvinyl (B) aldehyde, polyvinyl alcohol, polyvinyl butyrate, polyvinyl butyral, polyvinyl chloride emulsion, colloidal suspension polyvinyl chloride, impregnated cellulose , styrene acrylonitrile resins, styrene butadiene resins, delicate element formaldehyde resin, polyvinyl chloride acetate resin, polyvinyl alcohol.
2. Drying of the catalyst:
such as acrylonitrile catalyst, naphtha reforming catalyst, the temperature shift catalyst, high pressure and low pressure methanol catalyst methanol catalyst.
3 .Dyes, pigments, pigment:
basic dyes, CdS, ceramic pigment, chrome yellow, copper oxide, fast dyes, food color, indigo dyes, iron oxide, kaolin, zinc and barium white, Milo Lai Lan, organic pigments, paints , phthalocyanine, titanium dioxide, water color, zinc chromate, zinc potassium chromate, zinc chromate oxide, reactive turquoise blue, khaki green B, brightener.
4. Ceramics, glass, porcelain:
alumina, bentonite, beryllium oxide, calcium carbide, silicon carbide, cement, electric porcelain, ceramic, ferrite, materials, tiles, glass sand, grinding materials, insulation materials, iron oxide, kaolin, sand, silica, spark plug materials, soap stone, titanate, tungsten carbide, uranium oxide, wall materials, zinc oxide, zirconium silicide.
5. Carbohydrates similar products:
corn liquor, glucose, gum arabic, lactose, fructose, sorbitol, starch, total sugar, wheat flour.
6. Herbicides, fungicides, pesticides:
Arsenic calcium, copper oxychloride, cuprous oxide, 2,4 - dichloro - phenoxy acetic acid, 2,4 - dichloro - phenoxy acid methylamine salt alone , dichloro - phenoxy acid, dichloro - propionic acid sodium salt, lead arsenate, methyl - chloro - phenoxy acetic acid, methyl - chloro - phenoxy acetic acid sodium salt, methyl - chloride - phenoxy acid sodium salt, methyl - chloro - phenoxy acid, sodium - aluminum - fluoride, sodium - methyl - arsenate, Na - five - chloro phenol, sulfide colloid, zinc - diethyl - with dithiocarbamate ester, zinc - dimethyl - with dithiocarbamate, herbicides, insecticides, fungicides.
7. Dairy products and eggs:
baby food, yogurt, casein, caseinates, cheese, sugar, coconut milk, fresh cream, eggs: egg white, egg yolks, whole eggs, cream mixture, milk substitutes, mixed dairy products, skim milk , whey, whey liquor, full cream milk.
8. Refined foods and food products:
Artichoke, cake mixture, chrysanthemum tea, coconut mixture, coffee essence, on behalf of the fine coffee, decaffeinated coffee essence, of a fat mixture of flour, spices, a mix of juice into the matter, garlic, roses juice, licorice flow paste, malt extract, milk coffee mixture, Spain teeth pimento, vegetable protein, hydrolyzed protein, crude rennet, soup mixture, tea extract, tomatoes, mycelium vitamin B12, niacin, protease, hydrolyzed protein, sorbitol, valerian, soluble fish meal, fish paste, fish protein.
9. Drugs and biological products:
aluminum chloride hydroxide, aluminum sulfate esters, streptomycin sulfate, vitamin A, vitamin E, Huang thiazole amine, tetracycline, ampicillin, rutin derivatives, ammonia amoxicillin, oxytetracycline, penicillin , Anbixilin, amylase, aspirin, serum, calcium lactate, calcium pantothenate, Hu chloramphenicol, dextran, fluorine cloxacillin, diarrhea rhamnose skin, hormones, iron dextran, iron dextran, licorice, liver Jing, L-lysine, magnesium hydroxide, vitamins, antibiotics, enzymes, dextrin, liver fine, medium and herbal plant extract liquid.
10. Slaughterhouse by-products, blood and fish products:
animal protein, animal blood, dark albumin, light-colored albumin, brain, fish albumin, fish meal, fish paste, fish sauce, rubber and plastic hydrolysis, liver, whales exposed
11. Detergents and surfactants:
alkyl - Juan imitation-based salts, washing enzymes, dispersants, emulsifiers, fatty acid alcohol, heavy detergents, mild detergents, potassium phosphate and o-o-potassium phosphate, calcium phosphate, and o o Calcium phosphate, nitrile triacetate salt, optical instruments brightener, phosphate, soap grass glycosides, soap, and more four-potassium phosphate, synthetic detergent, sodium lauryl alcohol and soap.
12. Fertilizers:
ammonium phosphate, ammonium sulfate, mixed fertilizers, super phosphate, urea, NPK compound fertilizer.
13. Organic compounds:
Adipic acid, methyl ester of aluminum, aluminum stearate, amino phenol disulfonic acid, aspirin, bismuth compounds, calcium acetate, calcium D, calcium gluconate, calcium lactate, calcium propionate, calcium carbohydrate, calcium stearate, cellulose acetate, CMC, phosphoric acid methyl morphine, EDTA salts, magnesium salts network, glutamic acid, ester, glyoxal, lactose, lysine, reduced malic acid, mercapto thiazole suspension , metal stearate, oxalic acid, p-amino salicylic acid, potassium phthalate, potassium sorbate esters, rubber catalyst, salicylic acid, sodium acetate, sodium benzoate, sodium dimethyl dithiocarbamate connected, B xanthan-based sodium, sodium carbonate rock, sorbite sodium, stearic acid, wax, zinc stearate.
14. Inorganic compounds:
aluminum chloride, aluminum hydroxide, alumina, aluminum phosphate, aluminum silicate, aluminum sulfate, ammonium chloride, ammonium molybdate, ammonium nitrate, ammonium phosphate, ammonium sulfate, ANC catalyst, antimony sulfide, arsenic, barium chloride, barium hydroxide, barium sulfate, bauxite waste, bismuth carbonate, borax, boric acid, calcium carbonate, calcium chloride, calcium hydroxide, calcium phosphate, calcium propionate, calcium silicate, calcium sulfate, the catalyst cement (raw material), the second chromium oxide, chromium sulfate, cobalt sulfide, copper oxychloride, copper sulfate, copper sulfide, cryolite, copper oxide, mortar floating mineral, graphite, iron oxide, kaolin, lithium chloride, zinc and barium white, magnesium aluminum silicate, magnesium hydroxide, manganese carbonate, Manganese oxide, molybdenum disulfide, nickel carbonate, nickel hydroxide, nickel sulfide, potassium bicarbonate, potassium carbonate, potassium chlorate, magnesium peroxide, potassium nitrate, potassium permanganate, potassium persulfate, potassium phosphate, silica, sodium antimony , sodium bicarbonate, sodium dichromate, sodium chlorate, sodium chromate, sodium cyanide, sodium bisulfate, thionyl sodium bisulfate, sodium hypochlorite, sodium phosphate, sodium silicate, sodium aluminum silicate, sodium fluoride, sodium sulfate, the three sodium carbonate, thorium, titanium tetrachloride, uranium chloride, zinc carbonate, zinc sulfate.
15. Dry minerals :
such as copper concentrate, nickel ore, platinum ore, oxide ore, aluminum ore, zinc concentrate, tin concentrate, precipitation of copper, aluminum hydroxide precipitation, carbonate precipitation of nickel, precious metal clay, bentonite , cryolite, kaolin and phosphate.
16. Cellulose:
pulping machines, and other pulp, secondary fiber, semi-chemical and mechanical and chemical pulp, sulphate, sulphite, sulphite waste
17. Asphalt rubber products and other materials:
bentonite, coal, cork, diatomaceous earth, waste, after the coffee extract, yeast raw material, corn gluten, plastic powder, pectin, waste, water, sewage, sewage sediment, wheat gluten flour.

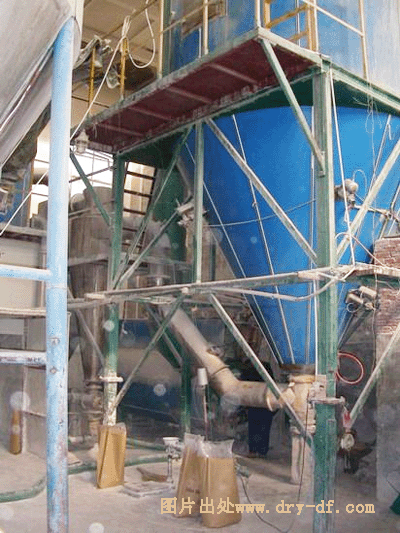

Bag filter with high-speed centrifugal spray drying equipment installation


Indirect heating fuel transport high-speed centrifugal spray dryer

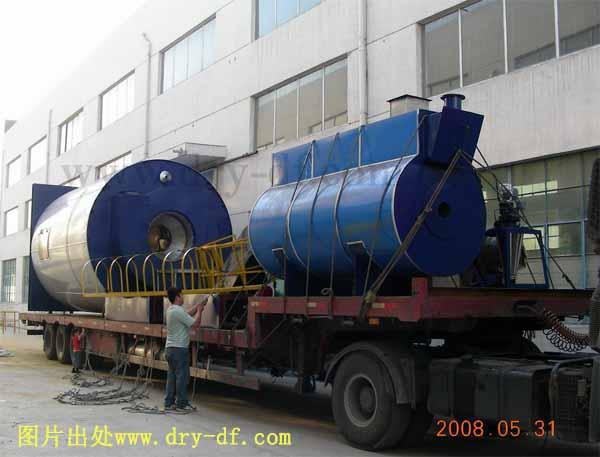

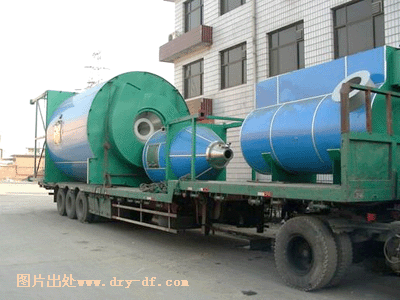

High-speed centrifugal spray drying tower shipped work


DFRP Multi-function low pressure centrifugal spray dryer

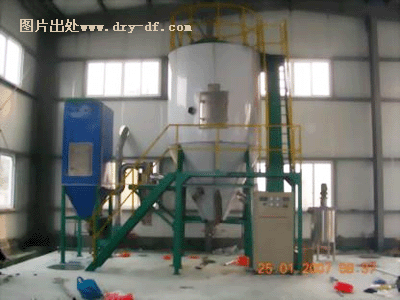

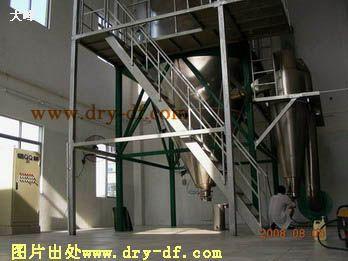

dfr high-speed centrifugal spray drying equipment on-site production
